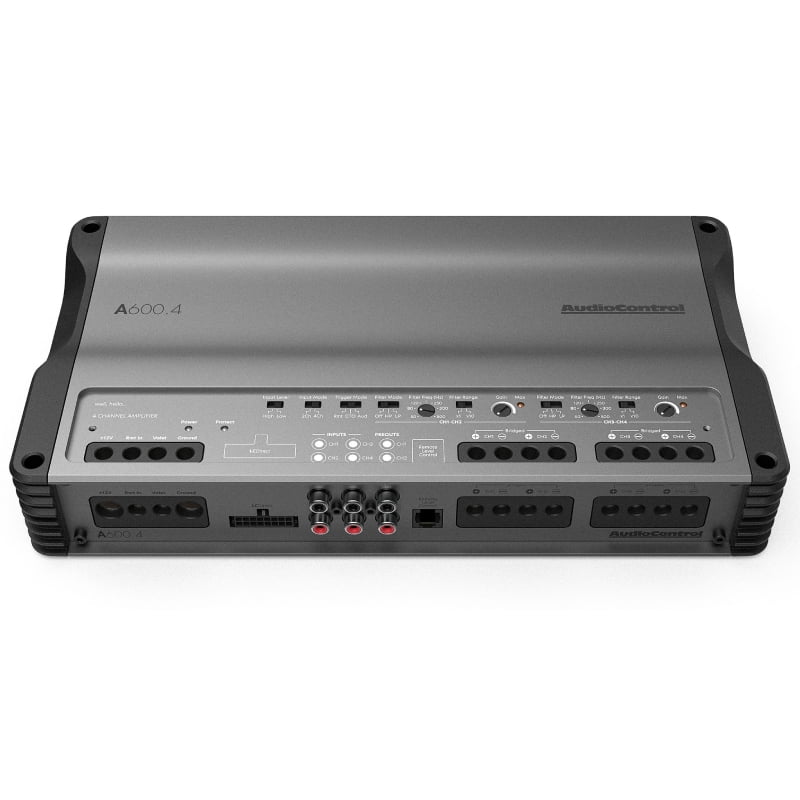

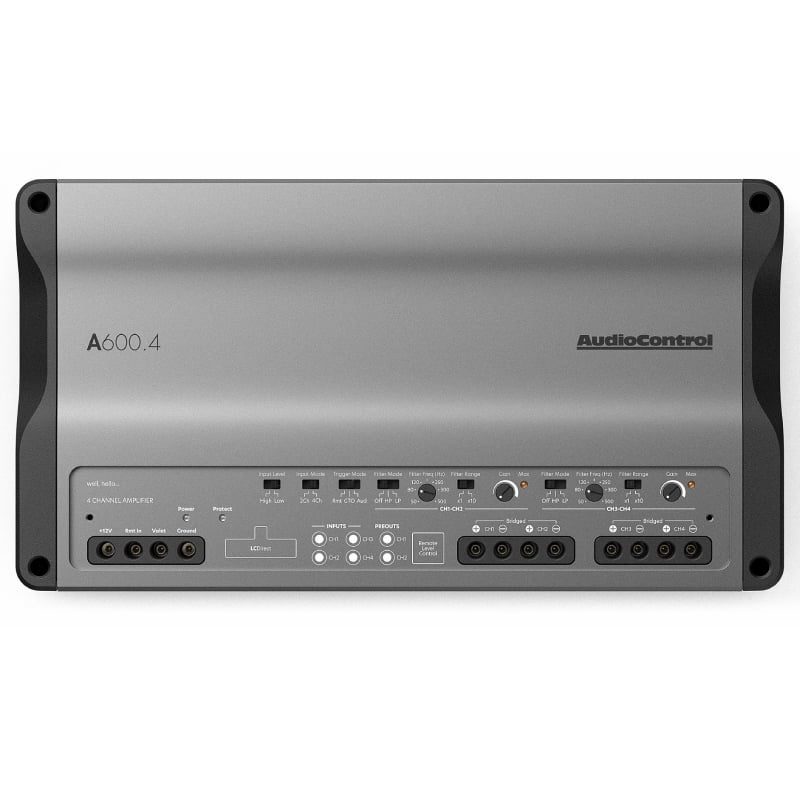

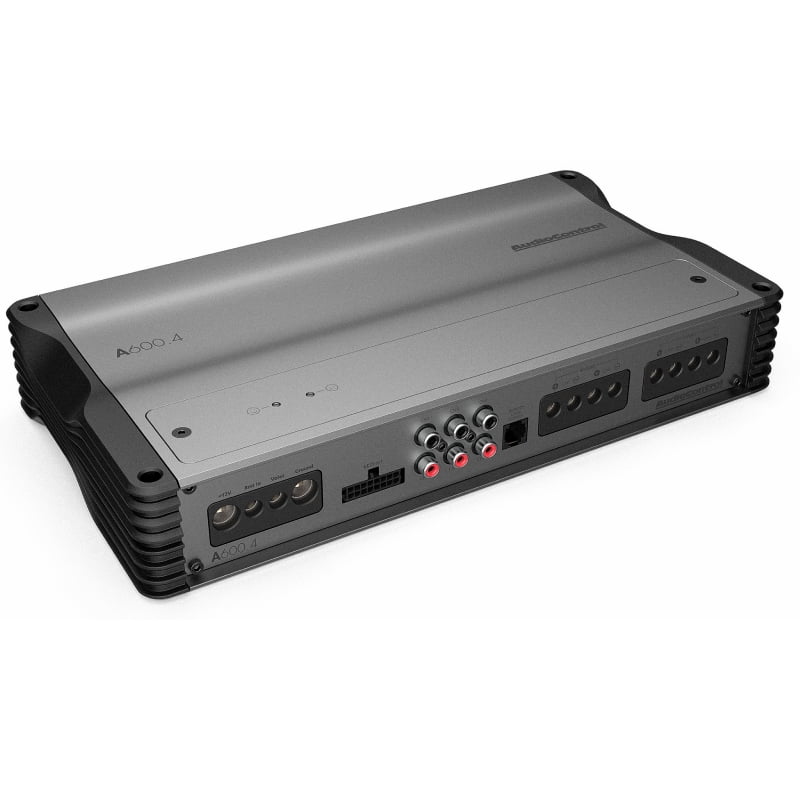

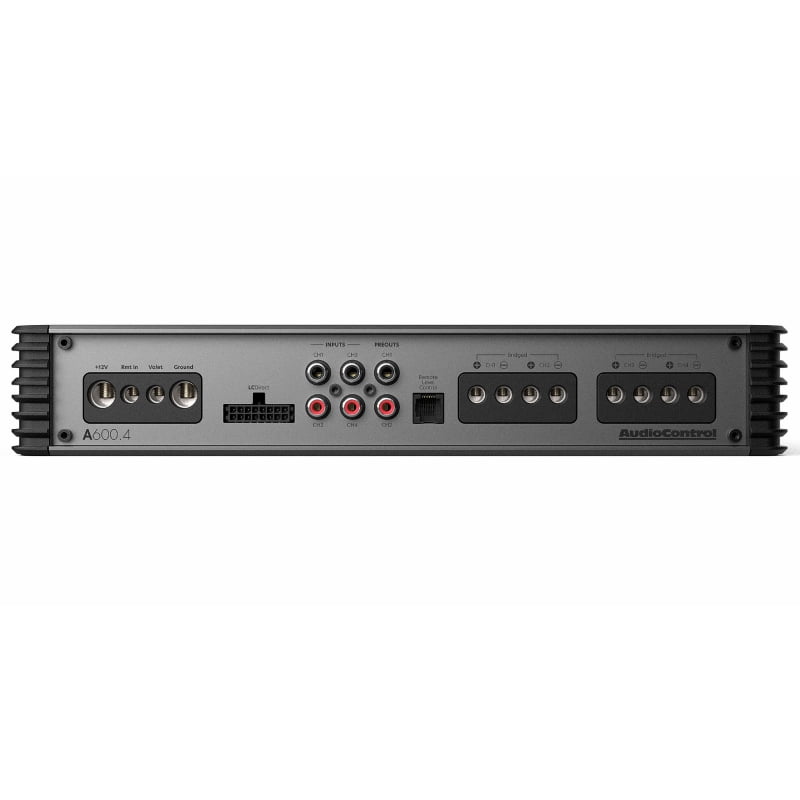

AudioControl A600.4 4-Channel 600W RMS Power Class-D Car Audio Amplifier

<p><b>BRAND NEW</b></p><p><b><br></b></p><p><b>AUDIOCONTROL A600.4</b></p><p><b><br></b></p><p><b>ALTITUDE Series | 4-Channel 600W RMS Power Class-D Car Amplifier</b></p><p><b><br></b></p><p><b>Highlights:</b></p><p><b><br></b></p><ul><li>The power supply circuitry adopts advanced pulse width modulator integrated circuits that are designed to offer improved performance and efficiency.</li><li>Designed with Advanced HEXFET® Power MOSFETs from International Rectifier that utilize advanced processing techniques to achieve extremely low on-resistance and reliable fast switching speed.</li><li>Premium Toroidal Transformer for optimal electrical efficiency and minimal signal distortion.</li><li>Premium Low ESR capacitors for minimal power loss and reduced internal heating.</li><li>Precision metal potentiometers for precise tuning and sturdy construction</li><li>Features 500V Class X2 capacitors with self-healing properties for high-frequency, high-current protection, ensuring low-loss AC peak surge and MOSFET protection.</li><li>High-efficiency Ferrite Core Inductor power output filters provide low current eddy losses over frequencies with high permeability.</li><li>High-performance class D intelligent driver IC with PWM modulator and protection with HEXFET Power MOSFET for abundant power and high efficiency.</li></ul><p><b>Key Features:</b></p><p><b><br></b></p><ul><li>High/Low Input Modes</li><li>GTO™ Signal Sense</li><li>Linkwitz-Riley Crossovers</li><li>Start-Stop Compliant</li><li>High Power Output in a Sleek Chassis</li><li>ParaBASS® Low-Frequency Contouring</li><li>Valet Mode Option</li><li>Optional Remote Level Control (ACR-1)</li><li>EV Compliant up to 17V</li></ul><p><b>Specifications:</b></p><p><b><br></b></p><p>PERFORMANCE:</p><p><br></p><ul><li>S/N Ratio (ref: rated power): 107 dBA</li><li>THD+N: &lt;0.21%</li><li>Power / Ground Wire Gauge: 4 AWG</li><li>Recommended Fuse rating: 80A</li><li>Valet Mode: Yes</li><li>Subsonic Filter: N/A</li><li>Linkwitz-Riley X-Over:</li><li>&nbsp;- Off</li><li>&nbsp;- High Pass</li><li>&nbsp;- Low Pass</li><li>&nbsp;- Freq. Range: 50Hz -5K Hz</li><li>Bass Processing: ParaBASS®</li></ul><p>INPUTS:</p><p><br></p><ul><li>Preamp Inputs: 4</li><li>Line-Level Inputs: 6 V max</li><li>Speaker-Level Inputs: 20 V max</li></ul><p>OUTPUTS:</p><p><br></p><ul><li>Rated Continuous (RMS) Power at 14.4V:</li><li>100W X 4 @ 4Ω</li><li>150W X 4 @ 2Ω</li><li>300W @ 4Ω Bridged</li></ul><p>REMOTE LEVEL CONTROL:</p><p><br></p><ul><li>ACR-1 (optional)</li></ul><p>IN THE BOX:</p><p><br></p><ul><li>A600.4, Manual, Warranty</li></ul><p>WEIGHTS &amp; DIMENSIONS:</p><p><br></p><ul><li>Dimensions: 12.5” W x 6.7” D x 2.1 H</li><li>Weight: 7.2 lbs</li></ul>

• High/Low Input Modes
• GTO™ Signal Sense
• Linkwitz-Riley Crossovers
• Start-Stop Compliant
• High Power Output in a Sleek Chassis
• ParaBASS® Low Frequency Contouring
• Valet Mode Option
• Optional Remote Level Control (ACR-1)
• EV Compliant up to 17V
• Inputs
  • Preamp Inputs: 4
  • Line-Level Inputs: 6V max
  • Speaker-Level Inputs: 20V max
• Preamp Inputs: 4
• Line-Level Inputs: 6V max
• Speaker-Level Inputs: 20V max
• Outputs (Rated Continuous Power at 14.4V)
  • 100W x 4 @ 4Ω
  • 150W x 4 @ 2Ω
  • 300W @ 4Ω Bridged
• 100W x 4 @ 4Ω
• 150W x 4 @ 2Ω
• 300W @ 4Ω Bridged
• Controls
  • Remote Level Control: ACR-1 (optional)
• Remote Level Control: ACR-1 (optional)
• Weights & Dimensions
  • Dimensions: 12.5” W x 6.7” D x 2.1” H
  • Weight: 7.2 lbs
• Dimensions: 12.5” W x 6.7” D x 2.1” H
• Weight: 7.2 lbs
• Performance
  • S/N Ratio (Signal-to-Noise Ratio, ref: rated power): 107 dBA
  • THD+N (Total Harmonic Distortion + Noise): <0.21%
  • Power/Ground Wire Gauge: 4 AWG
  • Recommended Fuse Rating: 80A
• S/N Ratio (Signal-to-Noise Ratio, ref: rated power): 107 dBA
• THD+N (Total Harmonic Distortion + Noise): <0.21%
• Power/Ground Wire Gauge: 4 AWG
• Recommended Fuse Rating: 80A
